Marseille, France

2005 - 2010

CMA CGM

CMA CGM Headquarters

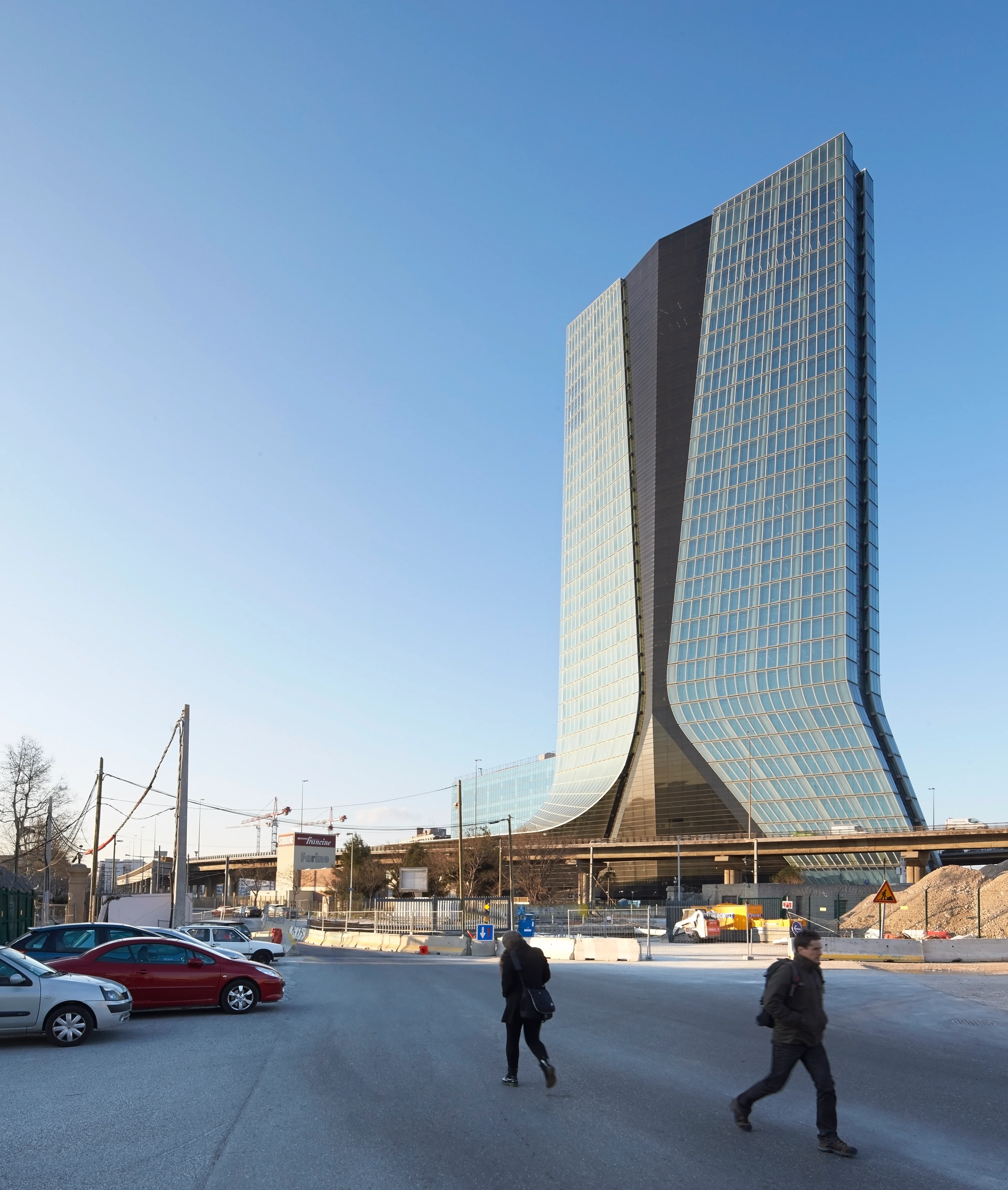

Rising in a metallic curving arc that slowly lifts and accelerates skywards into the dramatic vertical geometry of its revolutionary forms. With its ultimate coordinate 142.8 metres above the ground, a gateway to the city from both land and sea, an iconic vertical element that interacts with Marseille’s other significant landmarks.

At the centre of the city’s ambitious regeneration project

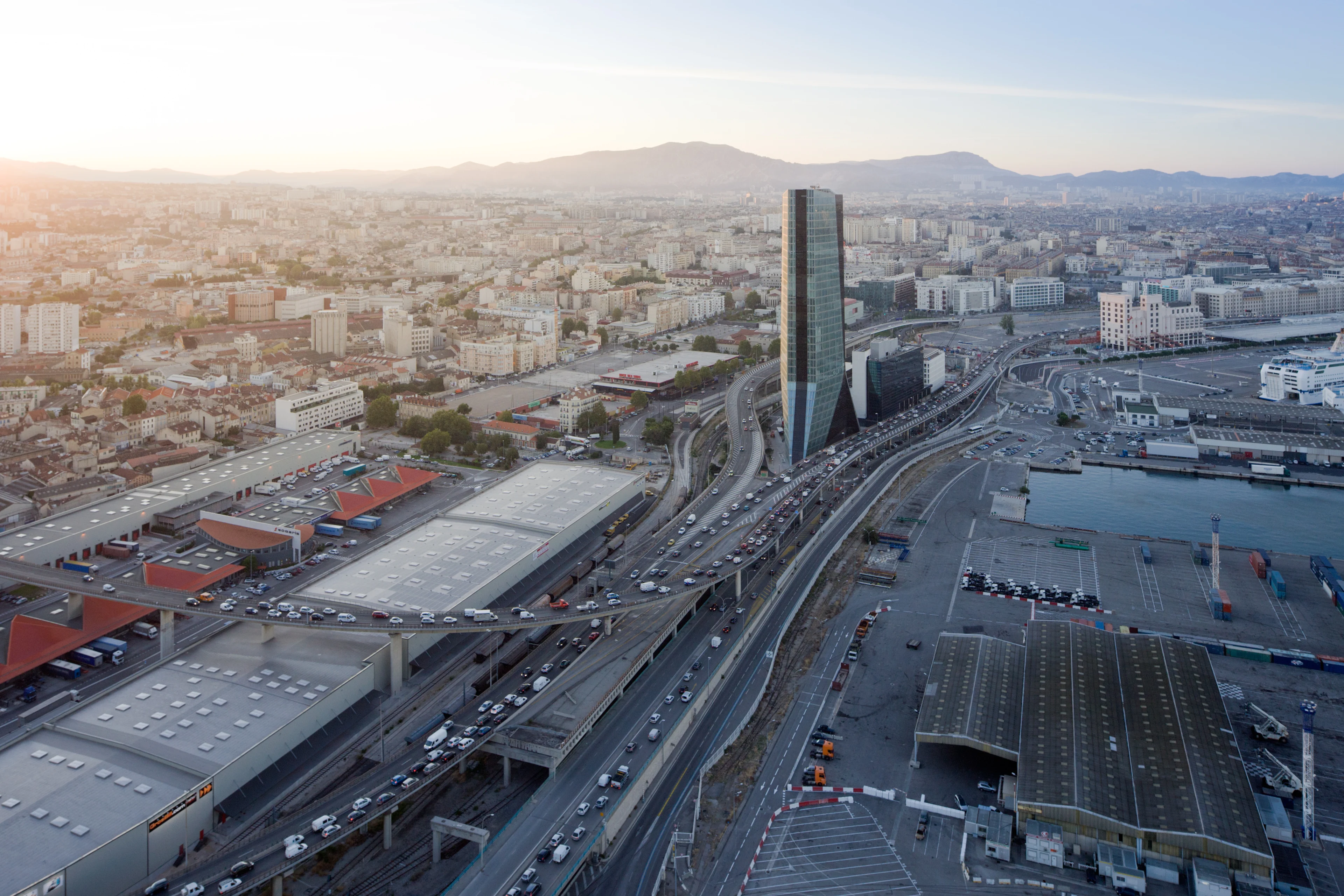

The tower stands at the centre of the city’s ambitious regeneration project, Euroméditerranée, located 1km north of the historic centre, adjacent to the commercial port.

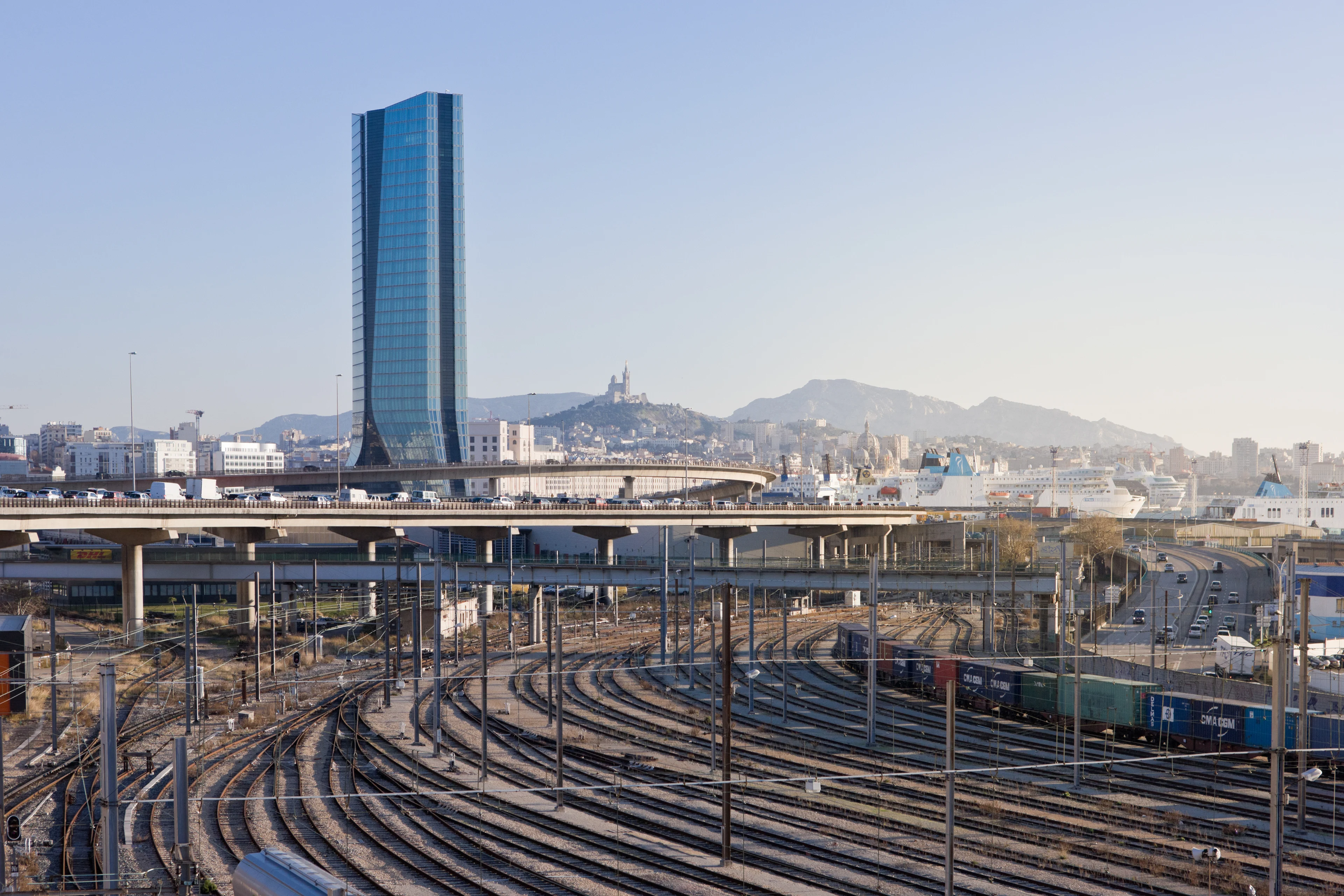

The site lies 100m back from the sea edge where the elevated motorway viaduct separates as it arrives into the north of the city. At ground level the site is dominated by the sweeping concrete viaducts overhead and the rhythmic colonnades of their supporting columns. It’s dense and noisy but a rich physical context. At high level, the context is the spectacular views over the bay of Marseille, the city and the docks.



The building is in 2 parts: tower (56,600m2) and annex (36,600m2) and totals 93,200m2. The new building accommodates up to 2,700 employees, 700 cars and 200 motorcycles in a covered car park, an 800 seat company restaurant, Gym, auditorium and all the associated technical equipment areas.

Photograph by Hufton + Crow

Movement and fluidity is introduced into the volumes

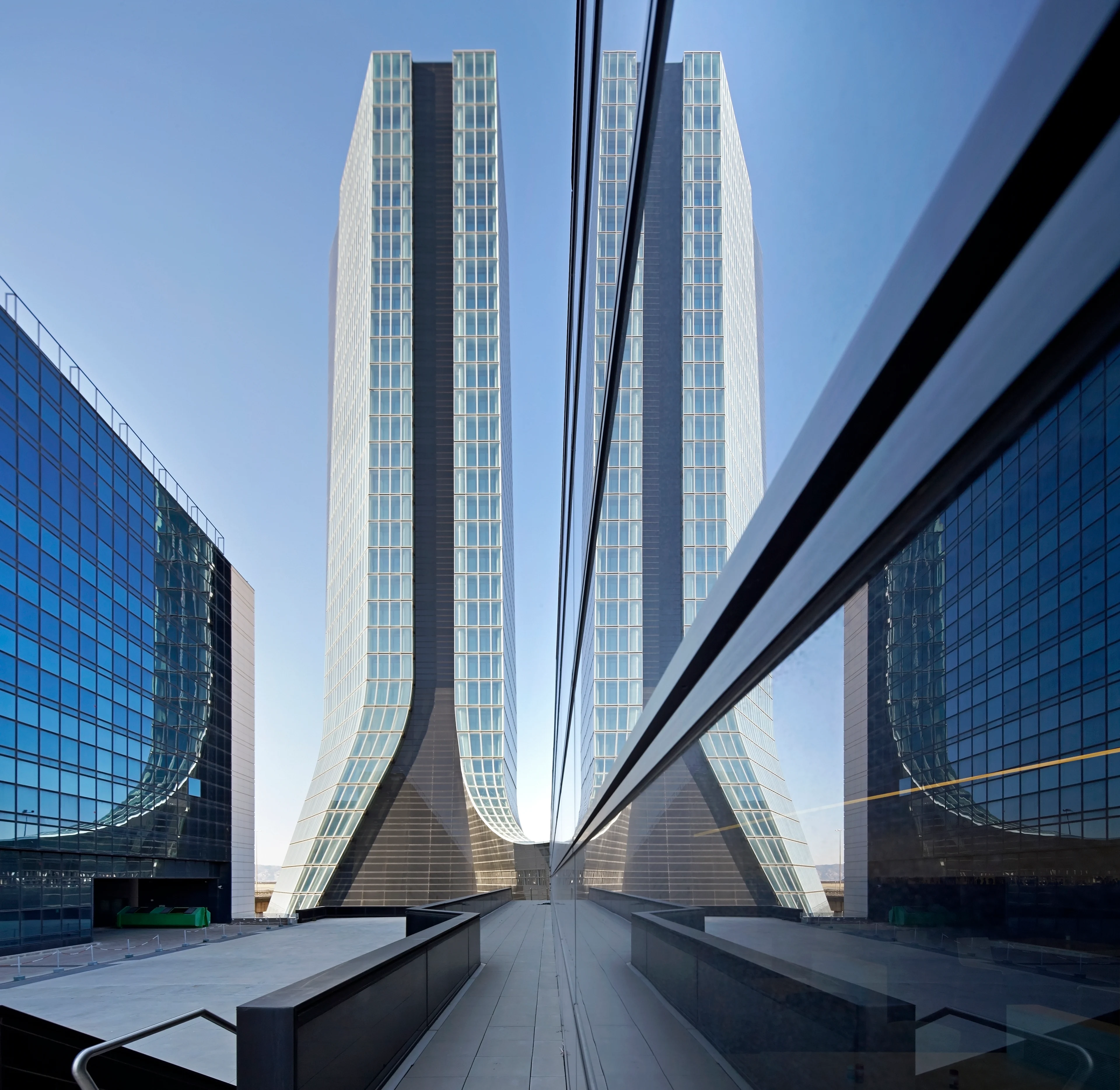

The design strategy to deal with an awkward, elongated site was to breakdown the volume of the façade into vertical segments and differentiate them using light and dark glazing. These are then offset to one another with the clear glazing set forward as a separate skin which is articulated architecturally by incorporating the peripheral structural columns.


Architecturally, the external skin has a dual purpose. Firstly it is to act as a solar screen enabling the use of light and non reflective glazing and secondly to free the façade from the constraints of a modular office interior.

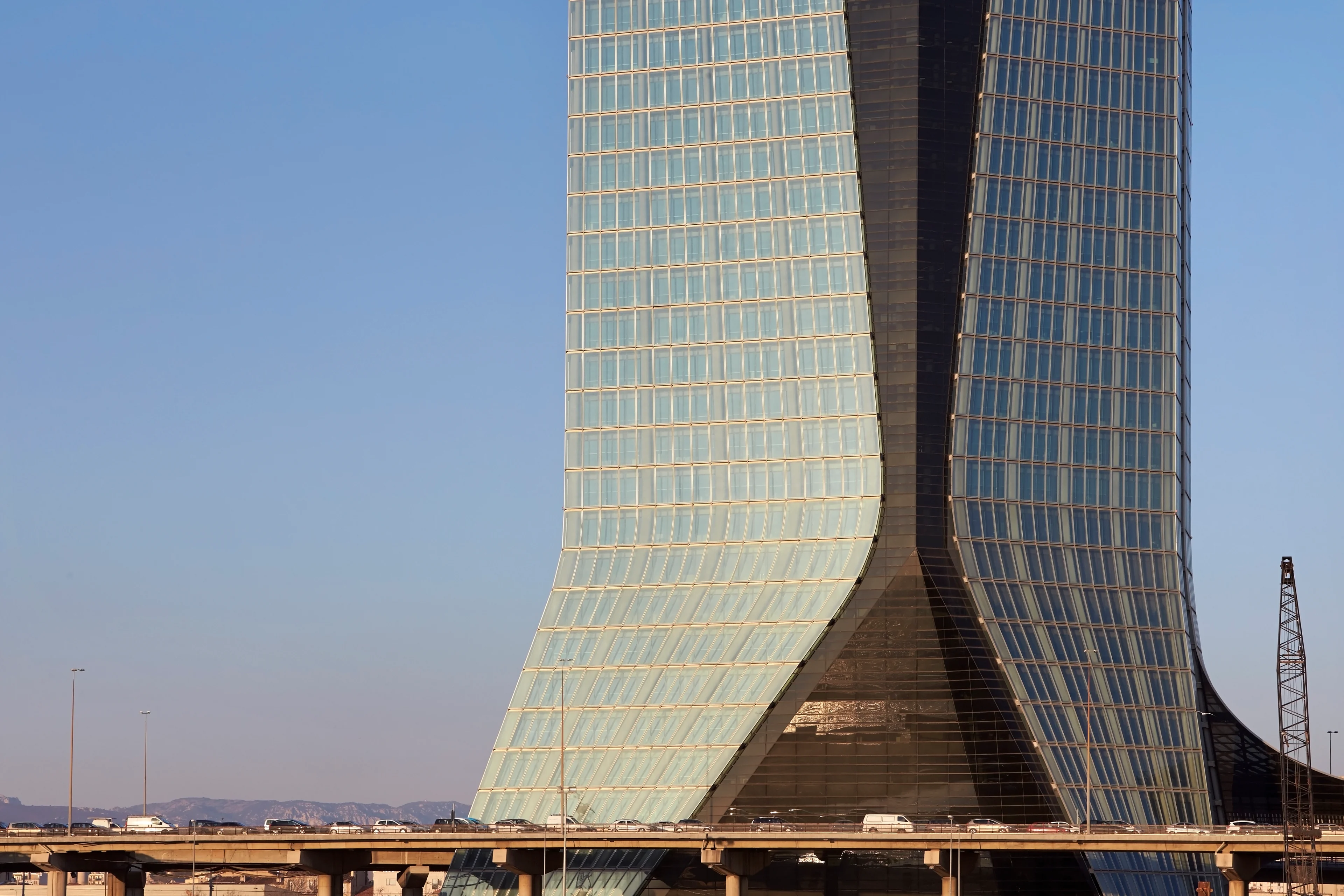

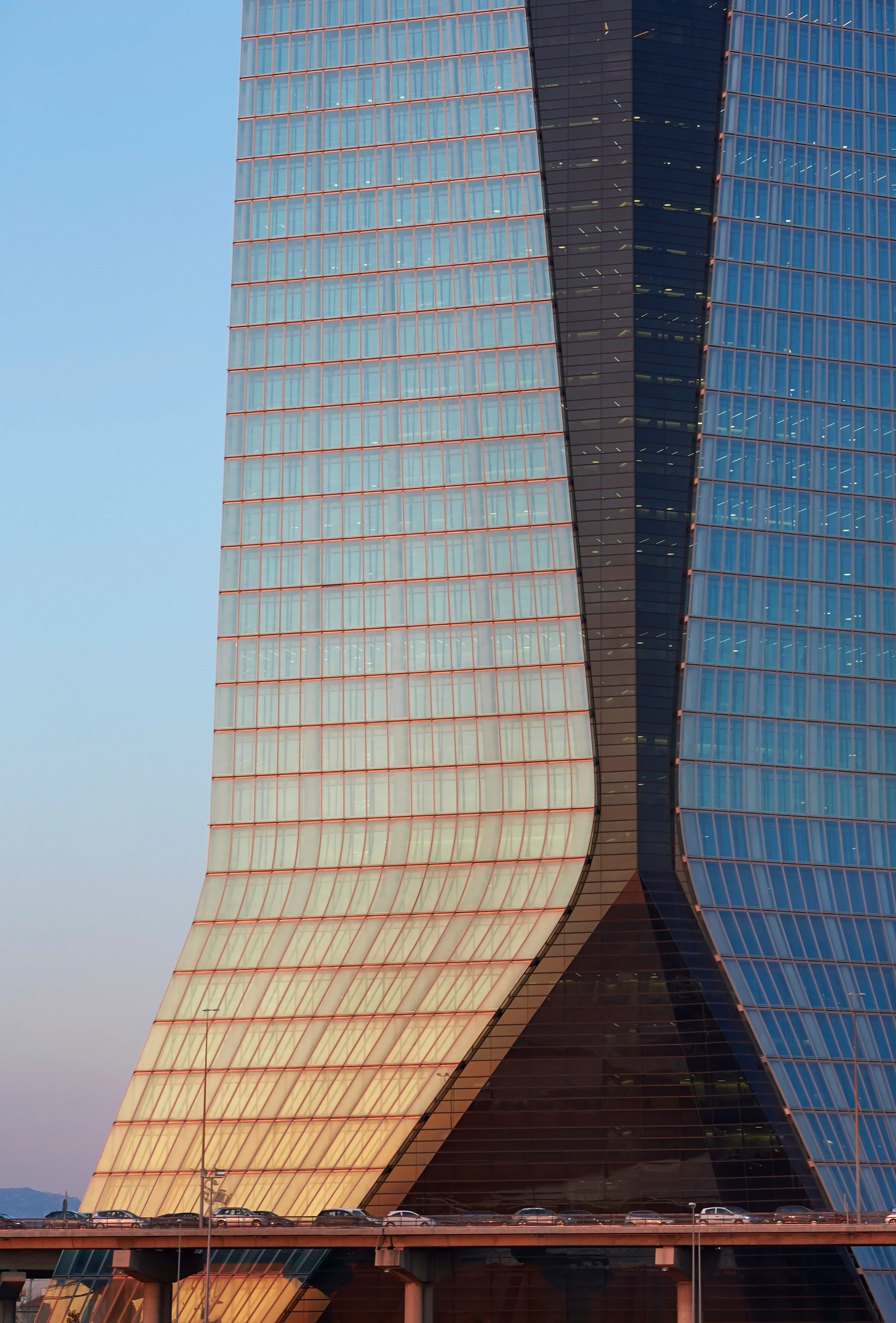

Movement and fluidity is introduced into the volumes and façades by generating vectors from the ground surface up which gradually and gently converge towards each other and then bend apart towards the top of the tower. The peripheral structural columns and the nomenclature of the external façade panels follow these vectors to create an elegant and coherent tower.
