Photograph by Hufton + Crow
Riyadh, Saudi Arabia
2012 - 2024
Arriyadh Development Authority
King Abdullah Financial District (KAFD) Metro Station
Photograph by Hufton + Crow
Photograph by Hufton + Crow
Photograph by Hufton + Crow
Photograph by Hufton + Crow
Photograph by Hufton + Crow
01
02
03
04
05
With Riyadh’s population more than doubling since 1990 to over 6.5 million and expected to reach 8.53 million residents within a decade, the Riyadh Development Authority (RDA) is building the Riyadh Metro, an entirely new public transit system for the city with 6 main lines covering 176 km and 85 new stations. Anticipated to transport 3.6 million passengers a day in full capacity mode by 2030, Riyadh Metro will contribute to reducing the number of car journeys throughout the city by almost 2 million car trips every day.

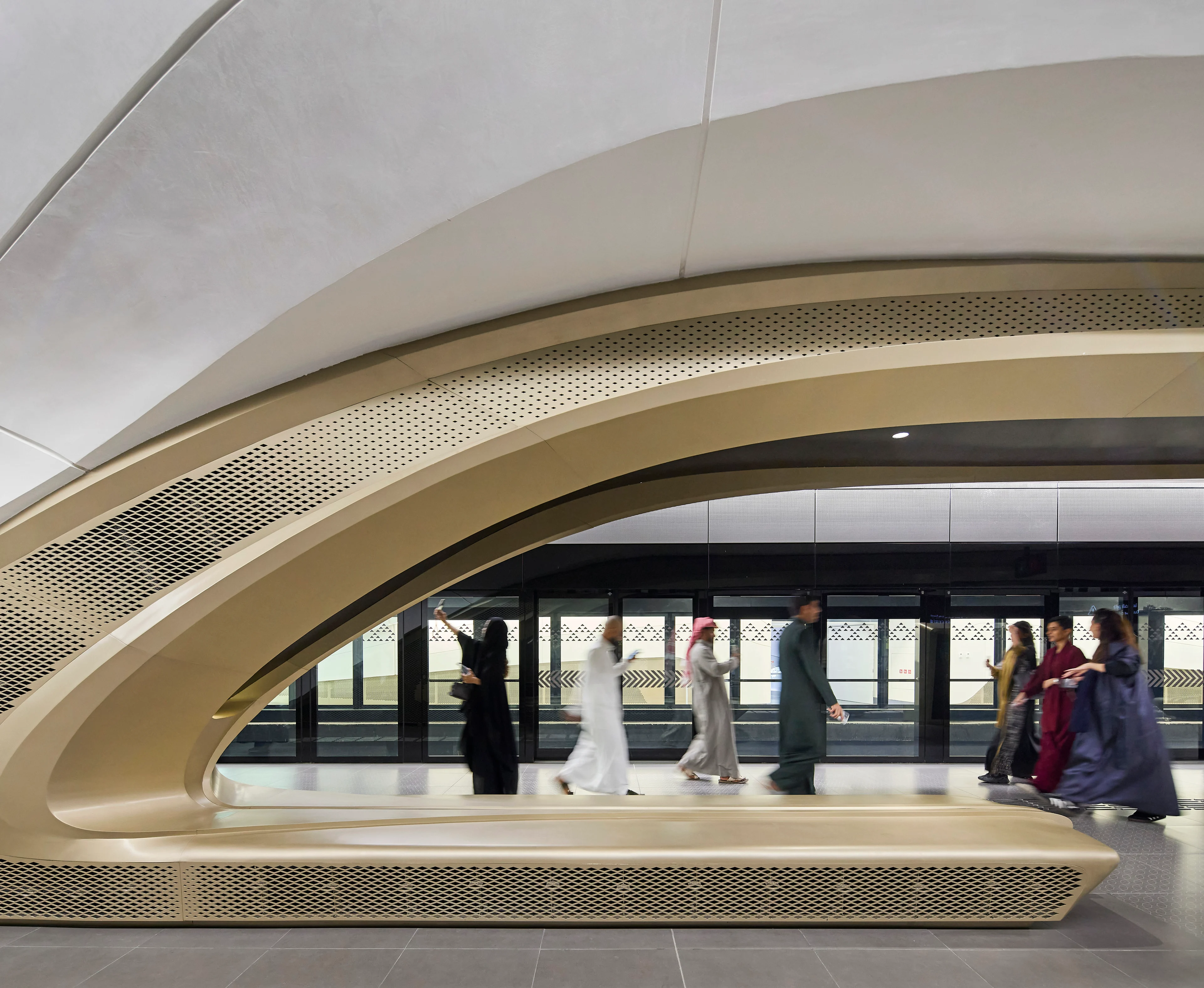

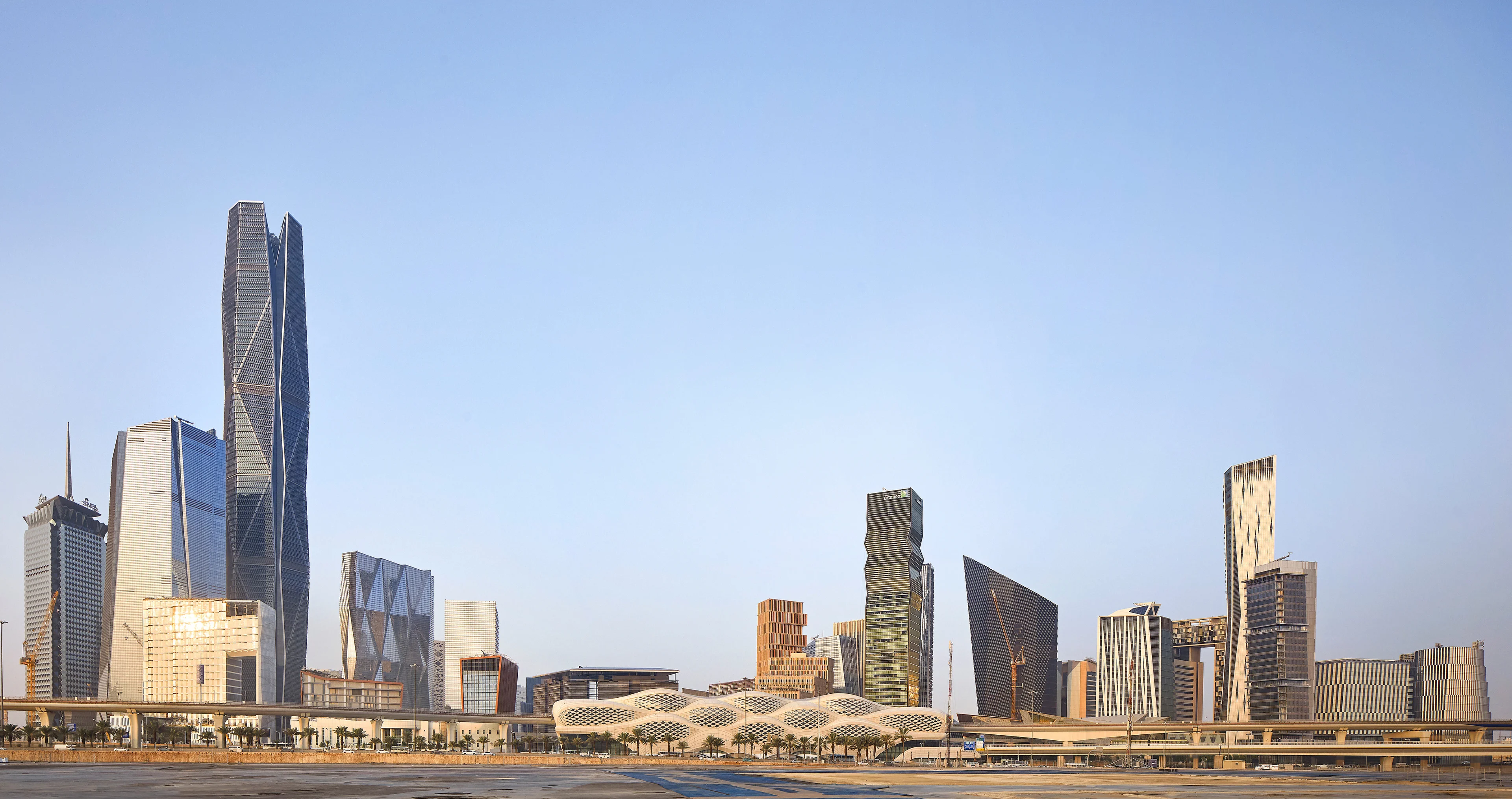

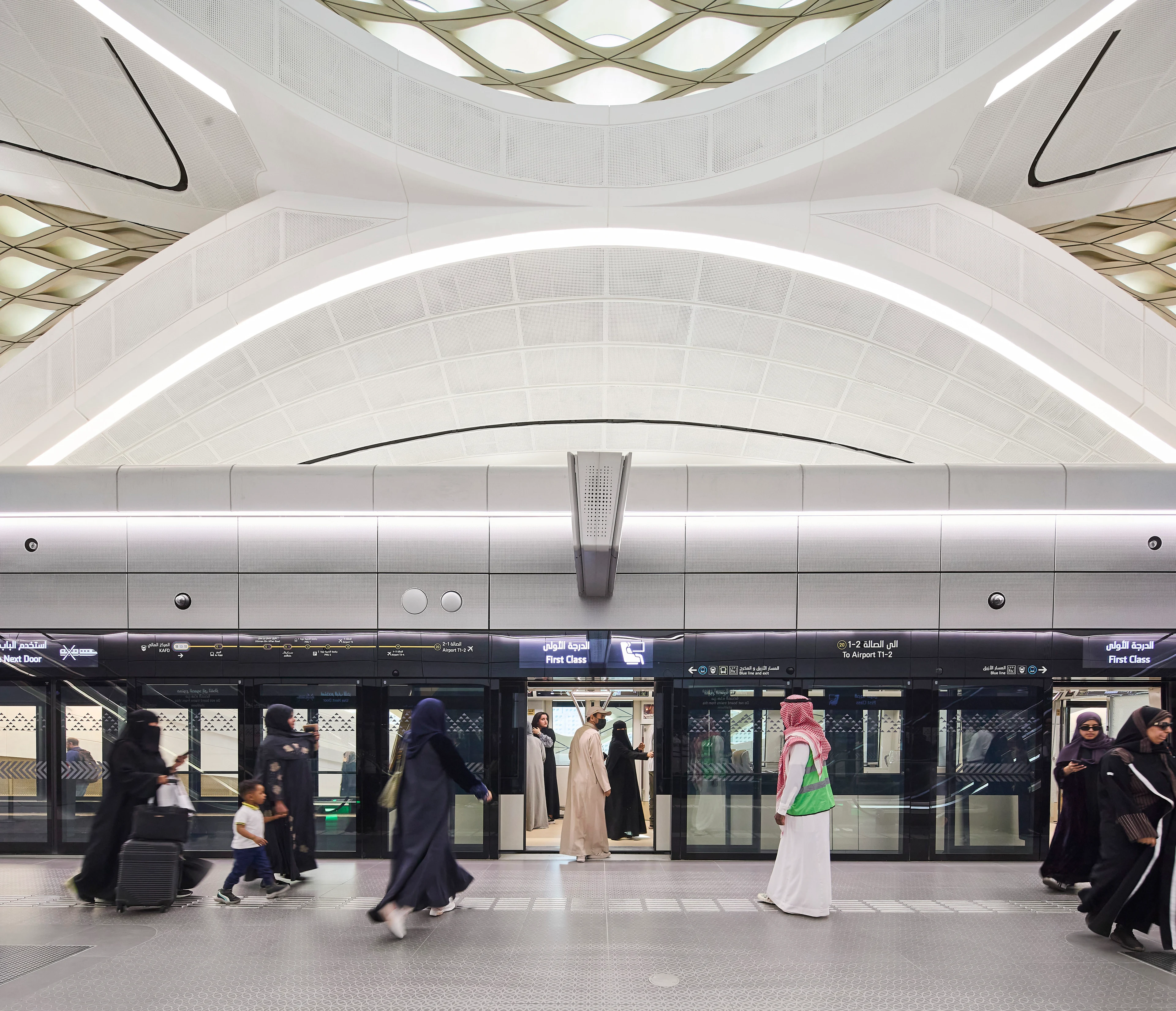

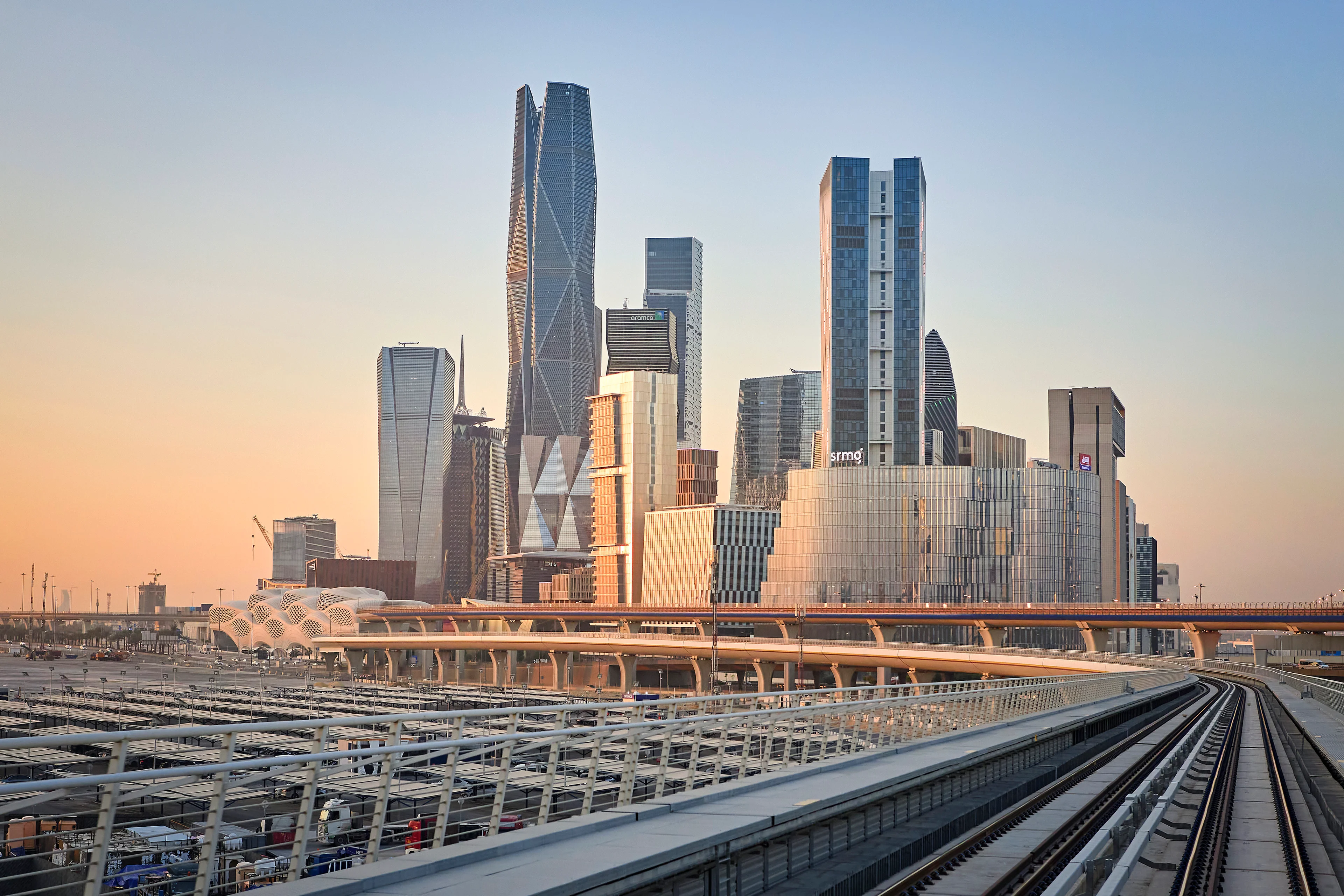

KAFD Metro Station will serve as a key interchange on the new network for the Blue Line (Line 1) with the terminus of the Yellow Line to the airport (Line 4) and the Purple Line (Line 6) as well as a skybridge connecting to the local KAFD monorail. With six platforms over four public levels and park-and-ride facilities, the station will be an important multimodal transport hub and a new public space for the city that is wholly integrated within the district.
Photograph by Hufton + Crow

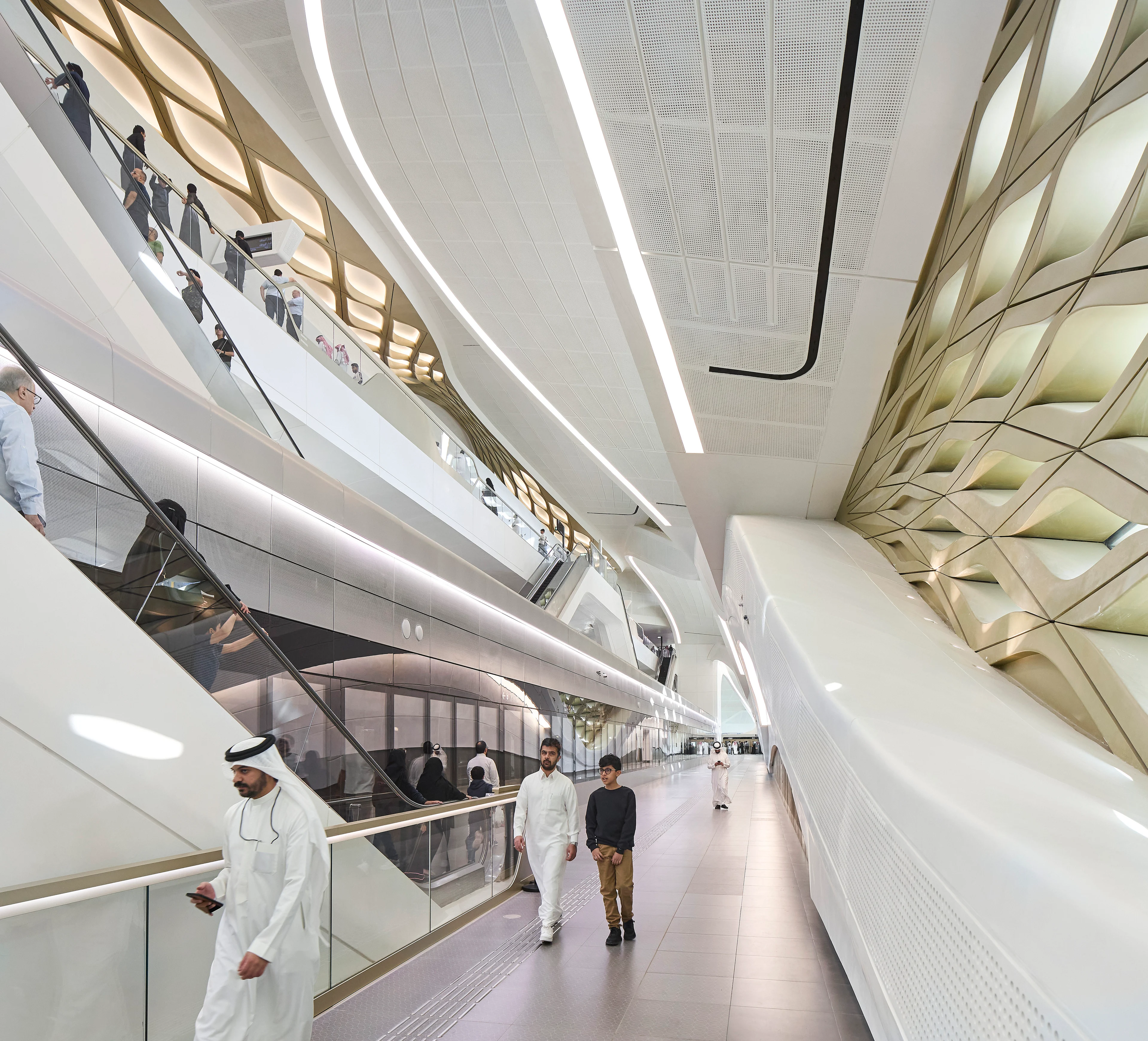

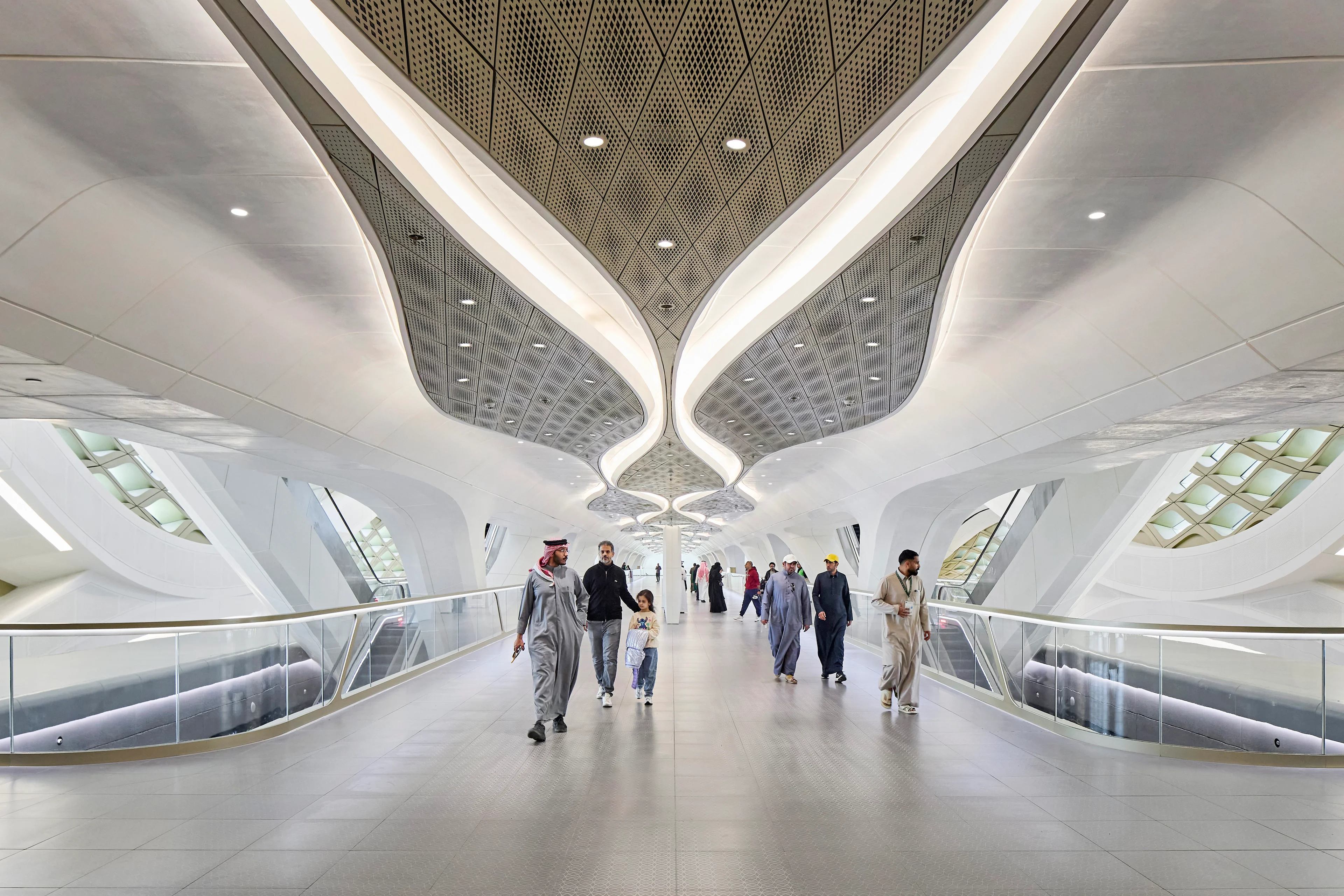

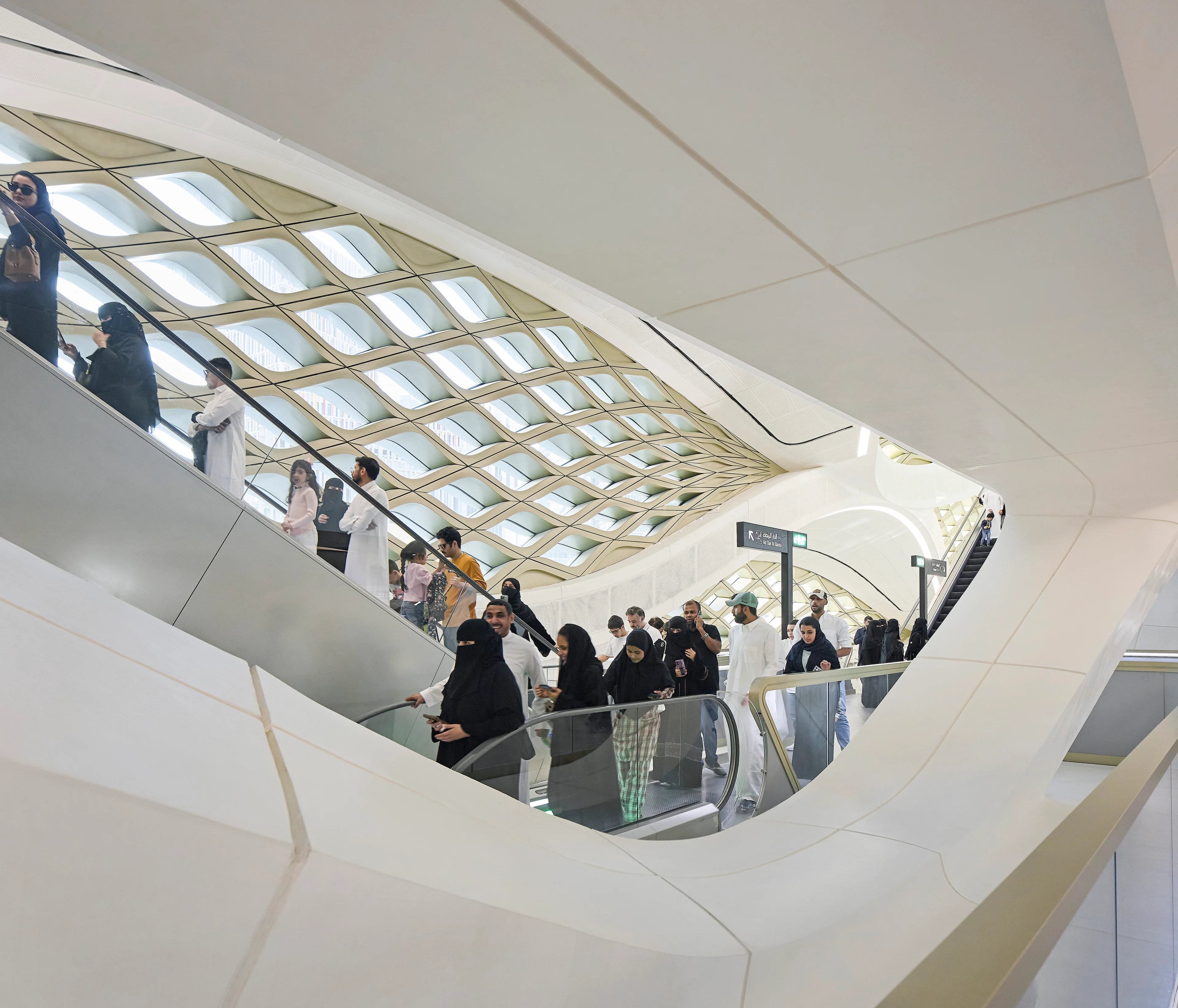

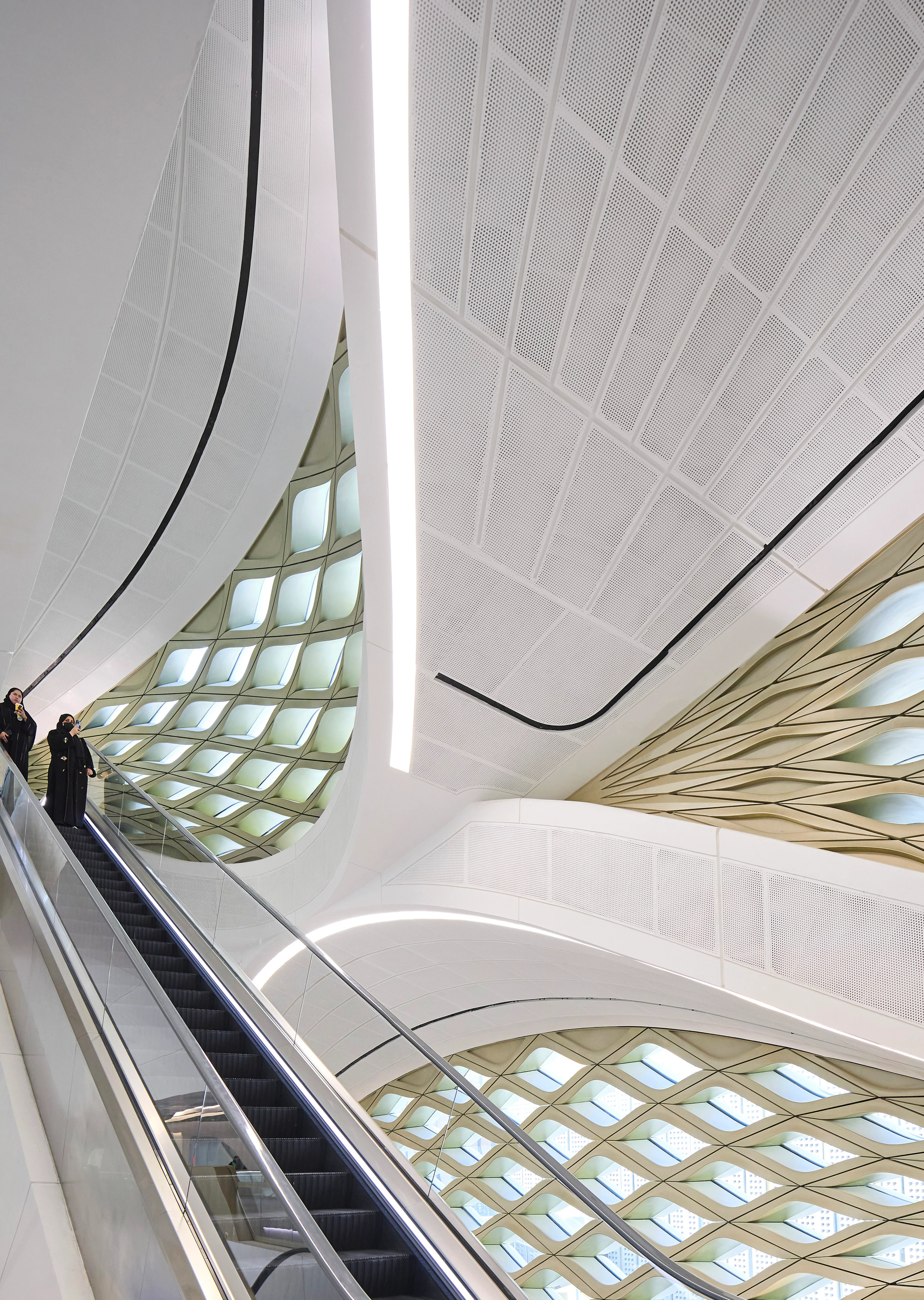

The station’s design prioritizes connectivity. Predicted rail, car and pedestrian traffic across the site has been modelled, mapped and structured to optimize internal circulation and avoid congestion. The resulting configuration is a three-dimensional lattice defined by a sequence of opposing sine-waves (generated from the repetition and frequency variation of the station’s daily traffic flows) which act as the spine for the building’s circulation.

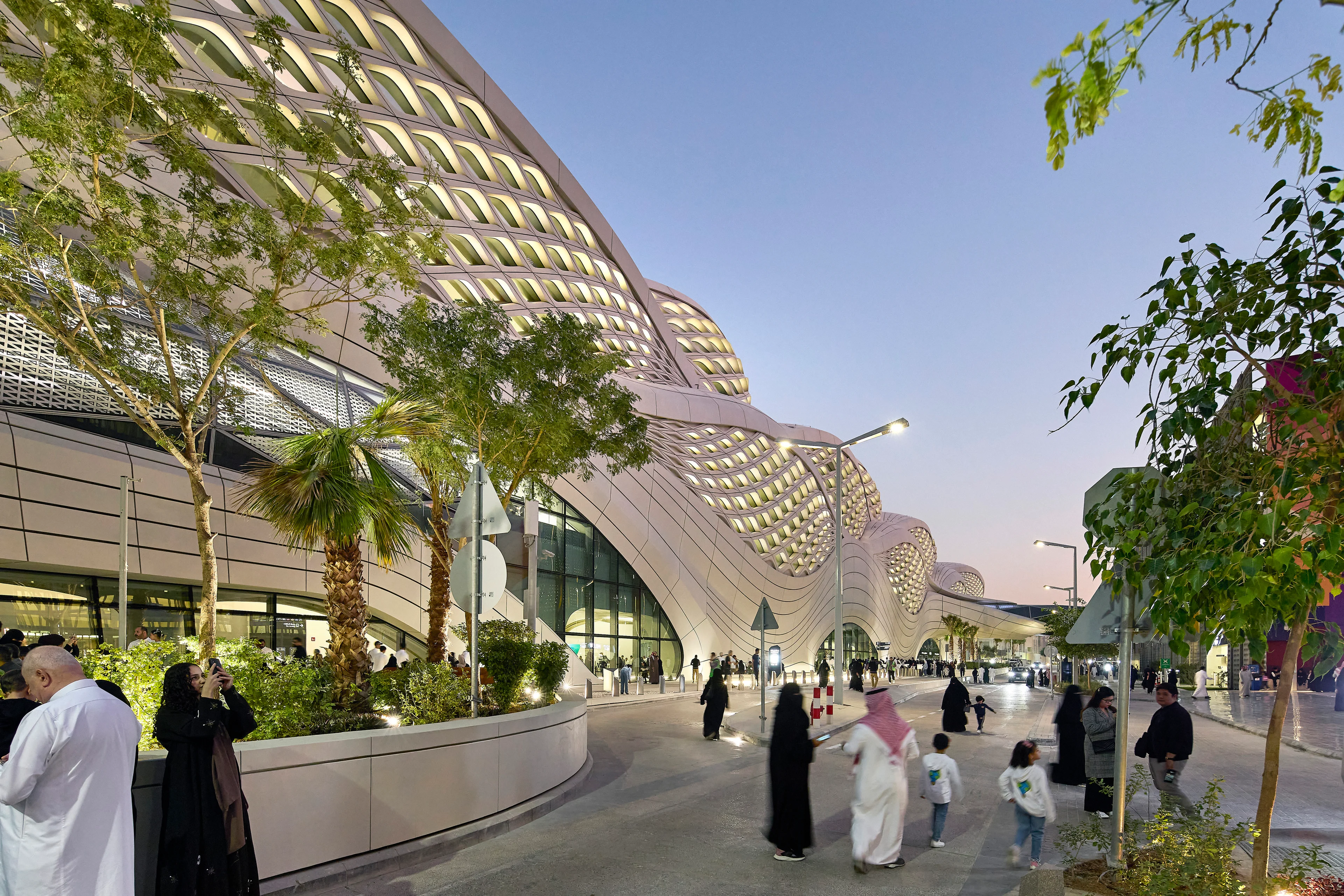

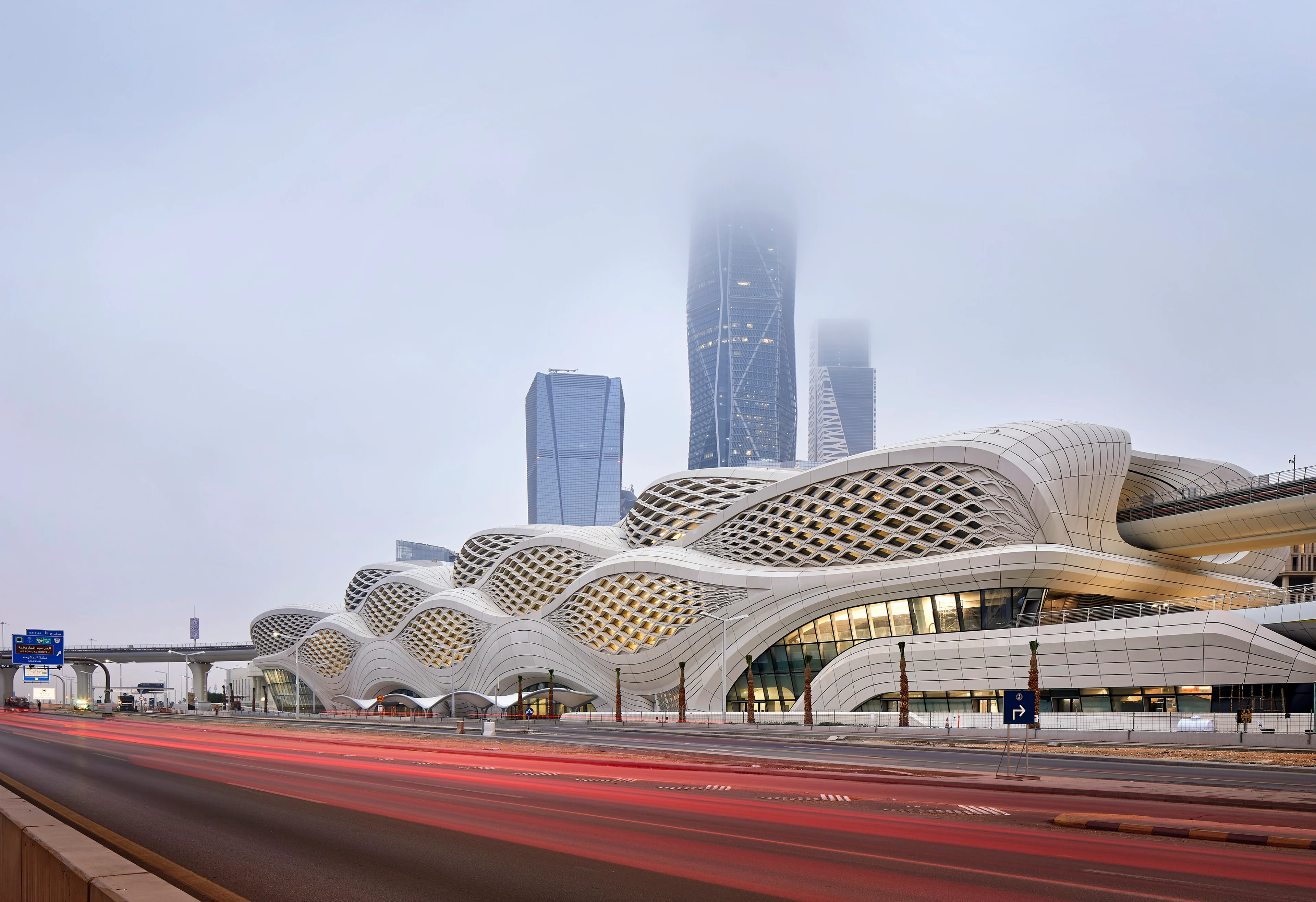

These sine-waves extend to the station’s exterior where façade patterning reduces solar gain and geometric perforations contextualize the station within its environment. The overall composition echoes patterns generated by desert winds in sand, where multiple frequencies and reverberation generate complex repetition in natural formations.
Designed by ZHA supported by the RDA Architects team, the KAFD Metro Station is composed from a subset of elements that are highly correlated through repetition, symmetry and scale to simplify technical challenges without compromising spatial quality or design ambition. Targeting LEED Silver certification, the station’s design integrates future possibilities for additional renewable energy capabilities that can achieve LEED Gold accreditation.
Photograph by Hufton + Crow
Photograph by Hufton + Crow
Photograph by Hufton + Crow
Photograph by Hufton + Crow
Photograph by Hufton + Crow
Photograph by Hufton + Crow
01
02
03
04
05
06
